English Tutorial

Enclosed a link for an english tutorial from me. DroneBlocks 360° P3P and MAVIC

DoneBlocks Mission

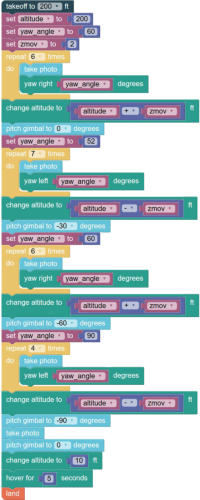

There is an APP by Dennis Baldwin with which you can program missions. The special thing about the panorama mission is that you have to change position after 15 mission steps. This is given by the DJI SDK. There is a simple trick to avoid this in a panorama mission with more than 15 steps by changing the height of the drone slightly. I have saved a few examples. The video tutorial is on my YouTube channel: youtube.com/c/ KilianEisenegger Mavic Air Mavic Pro Inception

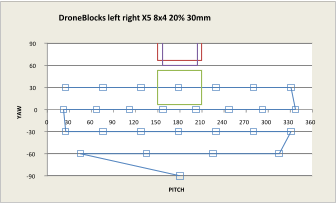

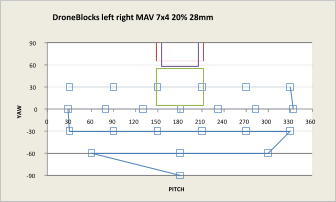

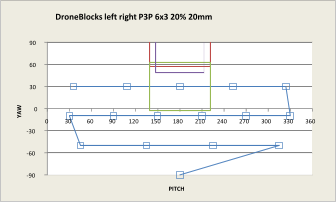

-90 -60 -30 0 30 60 90 0 30 60 90 120 150 180 210 240 270 300 330 360 YAW PITCH DroneBlocks left right X5 8x4 20% 30mm -90 -60 -30 0 30 60 90 0 30 60 90 120 150 180 210 240 270 300 330 360 YAW PITCH DroneBlocks left right P3P 6x3 20% 20mm -90 -60 -30 0 30 60 90 0 30 60 90 120 150 180 210 240 270 300 330 360 YAW PITCH DroneBlocks left right MAV 7x4 20% 28mm
hdrpano, © Kilian Eisenegger 2024, info@hdrpano.ch, 3283 Kallnach, Switzerland

English Tutorial

Enclosed a link for an english tutorial from me. DroneBlocks 360° P3P and MAVIC

DoneBlocks Mission

There is an APP by Dennis Baldwin with which you can pro- gram missions. The special thing about the panorama mission is that you have to change position after 15 mission steps. This is given by the DJI SDK. There is a simple trick to avoid this in a panorama mission with more than 15 steps by changing the height of the drone slightly. I have saved a few examples. The video tutorial is on my You- Tube channel: youtube.com/c/ KilianEisenegger Mavic Air Mavic Pro Inception
-90 -60 -30 0 30 60 90 0 30 60 90 120 150 180 210 240 270 300 330 360 YAW PITCH DroneBlocks left right P3P 6x3 20% 20mm -90 -60 -30 0 30 60 90 0 30 60 90 120 150 180 210 240 270 300 330 360 YAW PITCH DroneBlocks left right MAV 7x4 20% 28mm -90 -60 -30 0 30 60 90 0 30 60 90 120 150 180 210 240 270 300 330 360 YAW PITCH DroneBlocks left right X5 8x4 20% 30mm
