Use this icon to set a waypoint. Waypoints are used as waypoints or markers. A waypoint can be approached by mission or sent to a helicopter or search party by airdrop.
With this icon the drone flies to a previously set waypoint. During the mission, a WP comment is displayed in the status bar.
The AE button is used to copy the camera's automatic exposure settings to manual settings. It is not currently supported for the Mavic 2 Enterprise Dual.
The F key switches between focus and heat point evaluation. It allows us to display points in the live image as temperature values.
The Airdrop button sends the last waypoint as GPS coordinates to a helicopter or search party. The position of the drone and the pilot are sent as text.

Manual for the iOS hdrpano APP

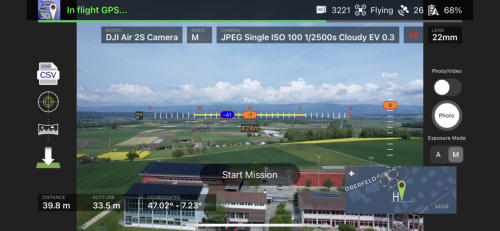

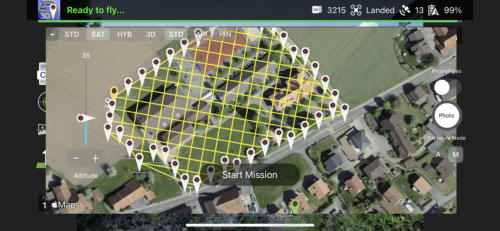

The hdrpano APP automates the capture of 360° images with drones. It also supports drones with interchangeable lenses for high resolution. The panorama mission can be split into multiple flights if more than 100 images are needed per panorama. The APP supports photogrammetry flights in 3 dimensions. The flight grid is created using the ground station map creator. The APP supports dynamic EV that adjusts to the camera angle to the ground. This works for drones and OSMO devices. To increase the EV range for AEB shots, the APP software AEB (SAEB) is used. This allows a dynamic range of more than 2 EV. With the APP you can realize inception and 3D missions with a few mouse clicks. Numerous videos on YouTube show how to use the APP optimally for different applications. Download the standard workflow: Standard-Workflow PDF The hdrpano 3D APP works with CSV mission files (compatible Litchi). You can create the mission files with the map-creator.

Menus

The Lens Display provides information about the currently used focal length of the drone camera. Mavic 2 zoom and Zenmuse X5 zoom lenses are supported.

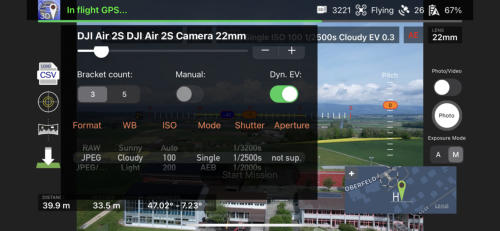

The panorama menu contains all values for a full-spherical panorama exposure. The values are automatically adjusted to the focal length of the lens used. For Matrice 600 with MX Gimbal, Lightbride is supported. The channel can be selected here. The remote trigger triggers the MX Gimbal and the panorama mission The images must be triggered with the remote trigger. In split mode, panoramas with more than 100 photos can be interrupted by a waypoint. You can change the drone's battery and fly back to the waypoint. Only spherical left-right mode is supported
This switch sets the gimbal of Inspire and Matrice drones to zero.
The APP supports Incpetion missions with 2 radii in the shape of an ellipse. The trajectory is automatically calcu- lated based on the height and distance between the starting point and the end point. The first 3 images are created in 5° steps, the others with 15°.

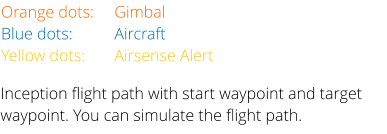

Orange dots: Gimbal Blue dots: Aircraft Yellow dots: Airsense Alert
Inception flight path with start waypoint and target way- point. You can simulate the flight path.
You can see the authorized flight zones on the map. Newer aircraft‘s have air-sense inbuilt. You can see the yellow alerts on the yaw status bar.

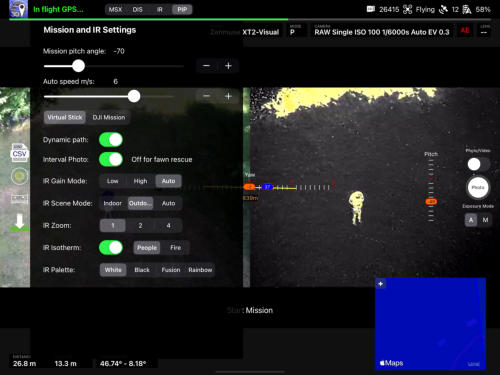

All my APP‘s are ready for MSX display. I you use a thermal camera like the Mavic 2 Enterprise Dual or an XT2 on the Matrice MSX view is available.
hdrpano, © Kilian Eisenegger 2023, info@hdrpano.ch, 3283 Kallnach, Switzerland

Manual for the iOS hdrpano APP

The hdrpano APP automates the capture of 360° images with drones. It also supports drones with interchangeable lenses for high resolution. The panorama mission can be split into multiple flights if more than 100 images are needed per pan- orama. The APP supports photogrammetry flights in 3 dimensions. The flight grid is created using the ground station map creator. The APP supports dynamic EV that adjusts to the camera angle to the ground. This works for drones and OSMO devices. To increase the EV range for AEB shots, the APP soft- ware AEB (SAEB) is used. This allows a dynamic range of more than 2 EV. With the APP you can realize inception and 3D mis- sions with a few mouse clicks. Numerous videos on YouTube show how to use the APP optimally for different applications. Download the standard workflow: Standard-Workflow PDF The hdrpano 3D APP works with CSV mission files (compatible Litchi). You can create the mission files with the map-creator.

Menus

Use this icon to set a waypoint. Waypoints are used as waypoints or markers. A waypoint can be approached by mission or sent to a helicopter or search party by airdrop.
With this symbol the drone flies to a previously determined waypoint. During the mission the status bar shows a WP comment.
The AE button is used to copy automatic camera exposure settings to manual settings. It is cur- rently not supported for the Mavic 2 Enterprise Dual.
The F Button toggles between Focus and Thermal Point Evaluation. It allows us to display points on the live image as temperature values.
The Airdrop button sends the last waypoint as GPS coordinates to a helicopter or search party. The position of the drone and the pilot are sent as text.
The Lens Display provides information about the currently used focal length of the drone camera. Mavic 2 zoom and Zenmuse X5 zoom lenses are supported.
The panorama menu contains all values for a full- spherical panorama exposure. The values are automatically adjusted to the focal length of the lens used. For Matrice 600 with MX Gimbal, Lightbride is sup- ported. The channel can be selected here. The remote trigger triggers the MX Gimbal and the panorama mission The images must be triggered with the remote trigger. In split mode, panoramas with more than 100 photos can be interrupted by a waypoint. You can change the drone's battery and fly back to the waypoint. Only spherical left-right mode is suppor- ted
This switch sets the gimbal of Inspire and Matrice drones to zero.
The APP supports Incpetion missions with 2 radii in the shape of an ellipse. The trajectory is auto- matically calculated based on the height and distance between the starting point and the end point. The first 3 images are created in 5° steps, the others with 15°.
Orange dots: Gimbal Blue dots: Aircraft Yellow dots: Airsense Alert
Inception flight path with start waypoint and target waypoint. You can simulate the flight path.
You can see the authorized flight zones on the map. Newer air- craft‘s have air-sense inbuilt. You can see the yellow alerts on the yaw status bar.
All my APP‘s are ready for MSX display. I you use a thermal camera like the Mavic 2 Enterprise Dual or an XT2 on the Matrice MSX view is available.
